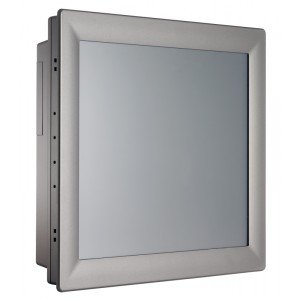

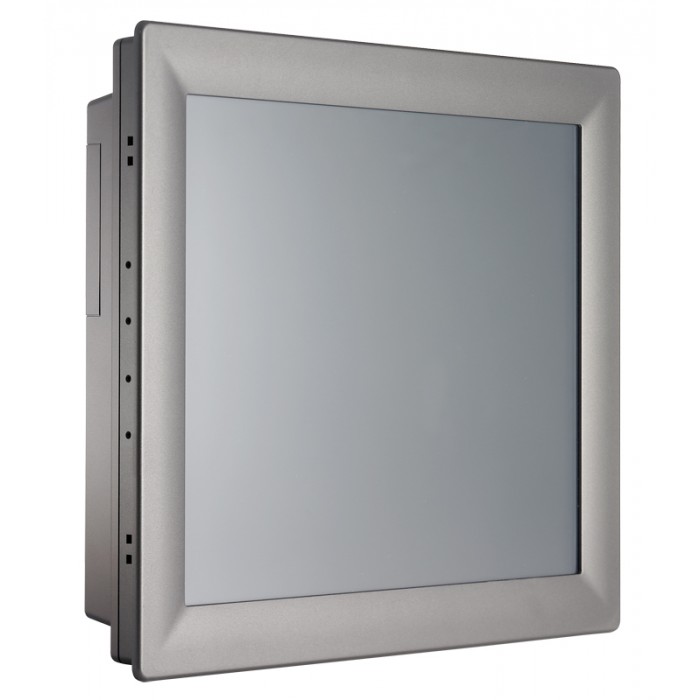

TPC-1771H-D3AE

COMPUTER SYSTEM, 17" SXGA, ATOM D525 1.8GHz/1M, 4GB

• Intel® Atom™ D525 1.8 GHz processor
• 17" SXGA TFT LED LCD
• Compact design with die-cast Al front bezel
• Fanless cooling system
• IP65 approved front panel
• PCIe and Mini PCIe expansion support
• 8 DI/O and backup SRAM support
• Supports DDR3 SDRAM
• Serial port isolation protection

The TPC-1771H features a fanless low power consuming Intel ® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5" SATA HDD. To expand function, this model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM.
