PPC-L157T-R81-XE

COMPUTER SYSTEM, PPC-L157T-R81 w/ATOM N270 /15""TFT/Res Touch

• 15 TFT XGA LCD with optional resistive touchscreen
• Embedded Intel® Atom™ processor N270 1.6 GHz
• System memory up to 2 GB DDR2 SDRAM
• Supports one internal SATA 2.5" HDD
• Support six USB 2.0 ports (4 external/ 2 internal), Dual Gigabit Ethernet
• Optional PCI/PCIe x 1 expansion kit
• Fanless and ultra-low power consumption
• Optional smart battery module
• Automatic data flow control over RS-485 (COM2)

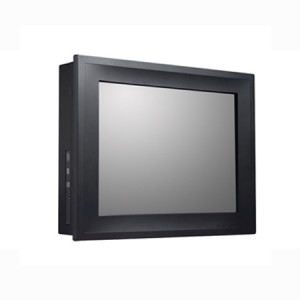

The PPC-L157T is a 15" Fanless panel PC that delivers high performance while consuming low power. The PPC-L157T operates with low noise and provides display resolutions up to 1024 x 768 (XGA) pixels. The PPC-L157T is equipped with dual Gigabit Ethernet connectors supporting either failover or LAN teaming. Advantech’s customization services and optional accessories including wireless modules, battery packs, and SATA optical devices, allow system integrators to design tailor-made solutions to a host of industrial applications.
