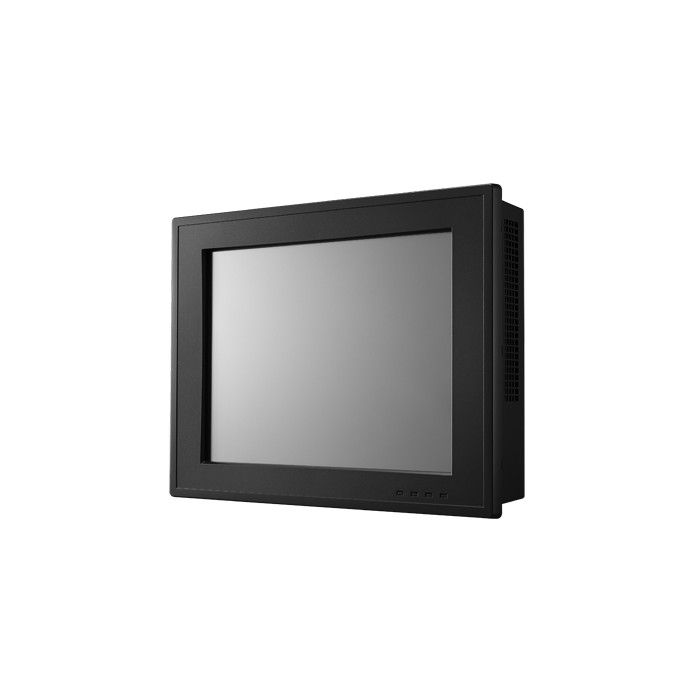

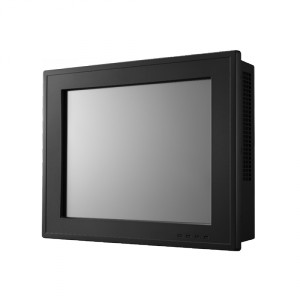

PPC-6120-RAE

Panel PC 12" with 4th Generation Intel® Core™ i / Celeron® Processor

• 12.1" TFT XGA LED Panel with resistive touchscreen
• Supports 4th Generation Intel® Core™ i / Celeron® Processor (Thermal Design Power: 35W/45W)
• System memory supports dual channel DDR3/DDR3L up to 16 GB
• Supports 2 x Mini PCIe sockets, one is included mSATA function
• Optional one PCI/PCIe x1 expansion kit
• Supports one isolated RS422/ RS485
• 8 x TTL level programmable DIO, 1 x VGA and 1 x Display port
• Dual GbE, supports Intel AMT8.0
• LED backlight Auto dimming

The PPC-6120 is a 12" color TFT LCD Panel PC which supports 4th Generation Intel ® Core™ i / Celeron ® Processors. It features extremely high computing power, various connectors, and can be installed in virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Four RS-232 ,one isolated RS422/485 and Dual Gb Ethernet connectors support Intel AMT, one expansion slot make PPC-6120 highly reliable, and provides a great solution for versatile applications.
